Terminal Assistant is the configuration application for ePNJPOS. This is where all settings related to installed peripherals (Card Readers, Printers, MICR Check Readers, etc.) will be made. Terminal Assistant will automatically launch after Activation.
To access Terminal Assistant, either:
)

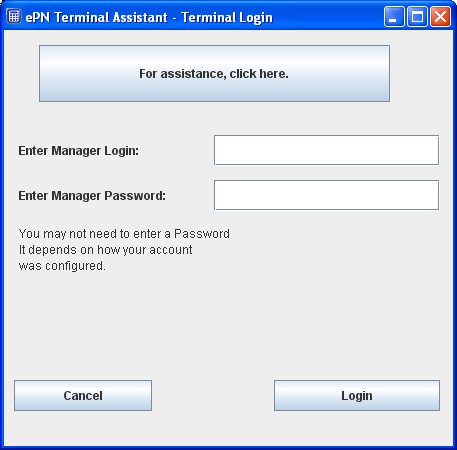

Figure 6–1 Terminal Assistant Login
A manager login will be required to enter Terminal Assistant.

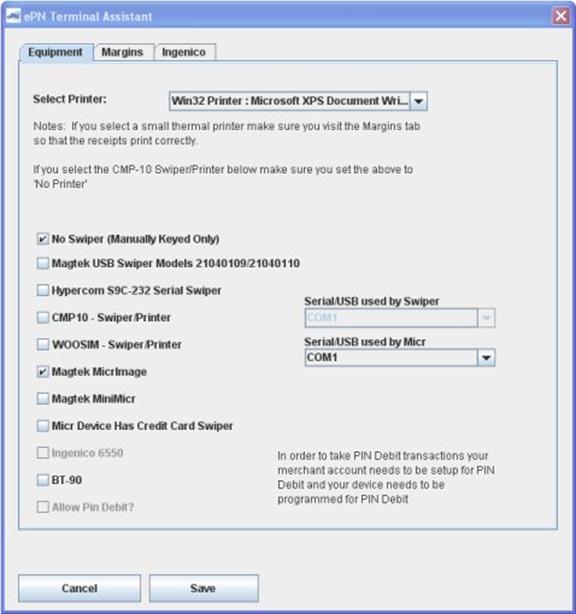

Figure 6–2 Terminal Assistant Equipment Tab
The Equipment tab is used for peripheral selection and configuration. The Printer drop-down allows for selection from the currently installed printers in Windows. The lower section is to select a card reader (swiper) and/or MICR check reader attached to the PC. Serial devices will allow for selection of connected serial port from the appropriate drop-down. Some devices are a swiper/printer combination; in those cases the Printer drop-down will be unavailable and printing will default to the peripheral.

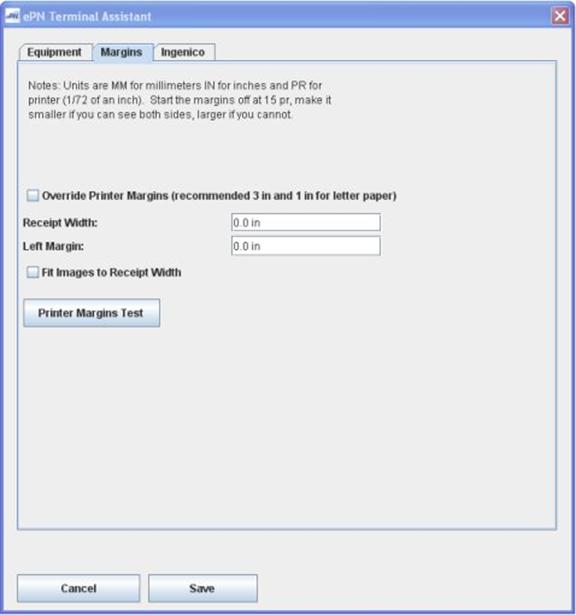

Figure 6–3 Terminal Assistant Margins Tab
The Margins tab allows for configuration of printer settings. If Override Printer Margins is not set, it defaults to 5.0 in for width and 1.0 in for left margin, which should be good for most standard printers. Fit Images to Receipt Width will scale top and bottom images to the receipt width.
Suggested Margin Settings:
Most small format receipt printers will work fine with width set to page width, and left margin set to 16 pr.

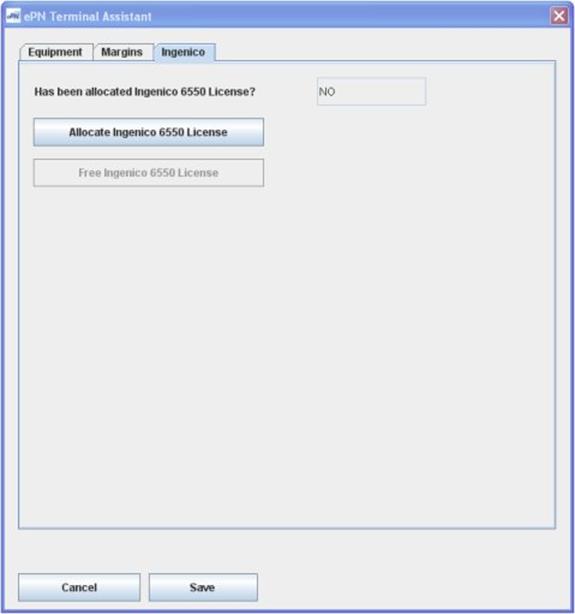

Figure 6–4 Terminal Assistant Ingenico Tab
The Ingenico tab will allow for license management of the Ingenico i6550. Ingenico i6550’s require an additional per device license and from here; an i6550 can be registered as in use allocating a license.
